We offer over 75 predesigned log home floor plans.

Find Your Dream Home


Ranch Truss Log Wall System

Quality Building Systems and Components to Fit Your Budget

Ranch Truss Package

Ranch Log Home Floor Plans with a Truss Roof System

Available in:

  • (19) log house floor plans starting at $40,400.00
  • (5) log garage floor plans starting at $25,800.00

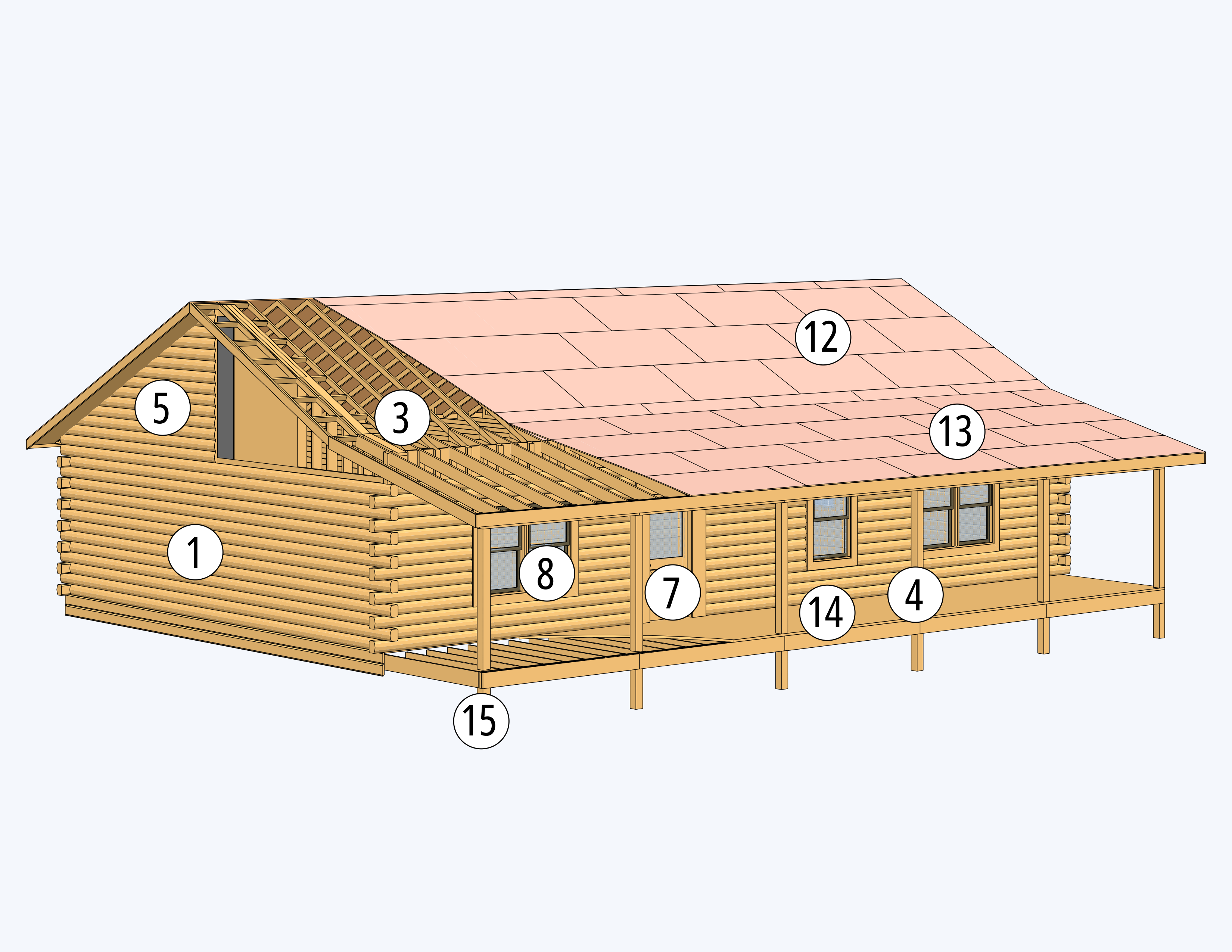

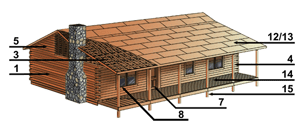

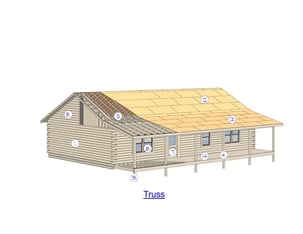

ranch truss log home schematics


View Floor Plans

Package includes:

  • 1a. Premier Log Wall

    Includes logs that are precut to length with shiplap butt joints; precut corners; precut door/window openings with 4" shiplap jambs; precut sills and headers; 2" exterior log siding to cover perimeter band; 1" lumber for base log wiring channel; premium caulk and gasket; timber lags; spring loaded Thru bolts; drill guide and bits. Logs are grade stamped and pressure treated with ClearTreat sodium borate. Also includes exterior stain and 5/25 year written warranty.

  • OR 1b. Pioneer Log Wall

    Includes linear foot logs (door/window openings and corners are field cut); premium caulk and gasket; timber lags. Logs are grade stamped and pressure treated with ClearTreat sodium borate. Precut corners are available.

  • 3. Truss Roof System

    Includes flat ceiling trusses for the main roof, truss bracing, lookouts, barge rafters, sub-fascia and OSB for the gables and the roof. Some plans have scissor trusses over the living room area that provides for a semi vaulted ceiling. Porch roof components are 2 x conventional framing per plan and includes fascia, board & batten trim and roof sheathing per design.

  • 4. Porch Framing

    Includes borate pressure treated top plate and support posts.

  • 5. Exterior Gable

    Includes borate pressure treated 2” exterior log siding.

  • 7. Exterior Pre-Hung Doors

    Includes interior and exterior 1" trim lumber.

  • 8. Windows

    Includes Low-E glass units with screens. Includes interior and exterior 1" trim lumber.

  • 12/13. Roof and Porch Roof Sheathing

  • 14. Porch Floor

    Includes pressure treated joists, sill and 5/4 flooring.

  • 15. Foundation Posts

    Includes 6x6 pressure treated posts for porch and/or deck per plan.

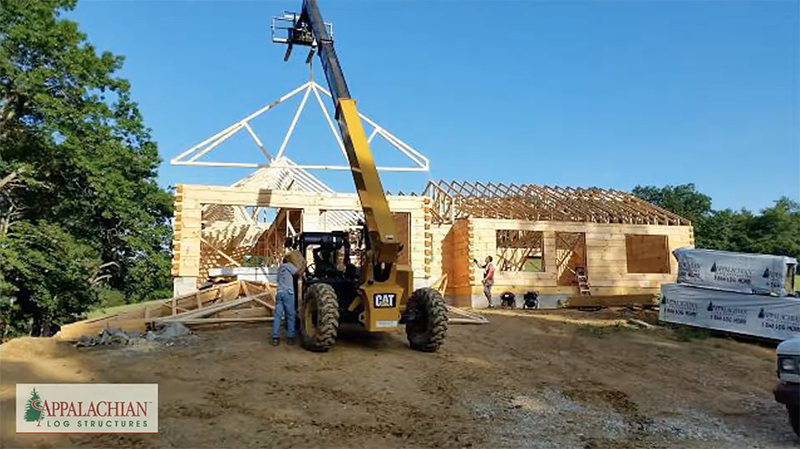

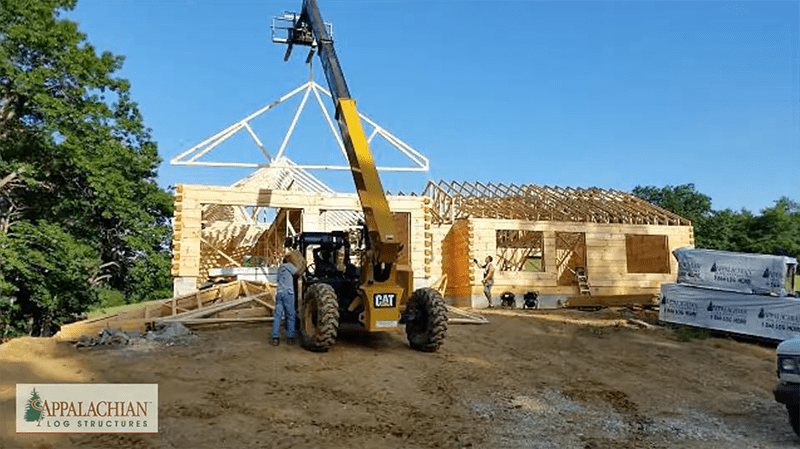

Ranch Truss Log Home Overview

Watch our walkthrough video below to learn more about the features included in this package.

Get Professional Guidance

Are you longing to build a log cabin or home but don’t know where to start? That’s where we come in. A member of our team will be happy to guide you through the process and provide you with helpful resources.

Speak to a Consultant
