We offer over 75 predesigned log home floor plans.

Find Your Dream Home
1-866-LOG-HOME

(1-866-564-4663)

Appalachian Log Structures

Premier Log Wall System

Quality Building Systems and Components to Fit Your Budget

All Premier Packages Include:

  • 5/25 year warranty

  • Borate pressure treated grade stamped logs

  • 3 sets of blueprints

  • Construction manual

  • Construction video (DVD)

  • One day on-site technical assistance

Premier Packages

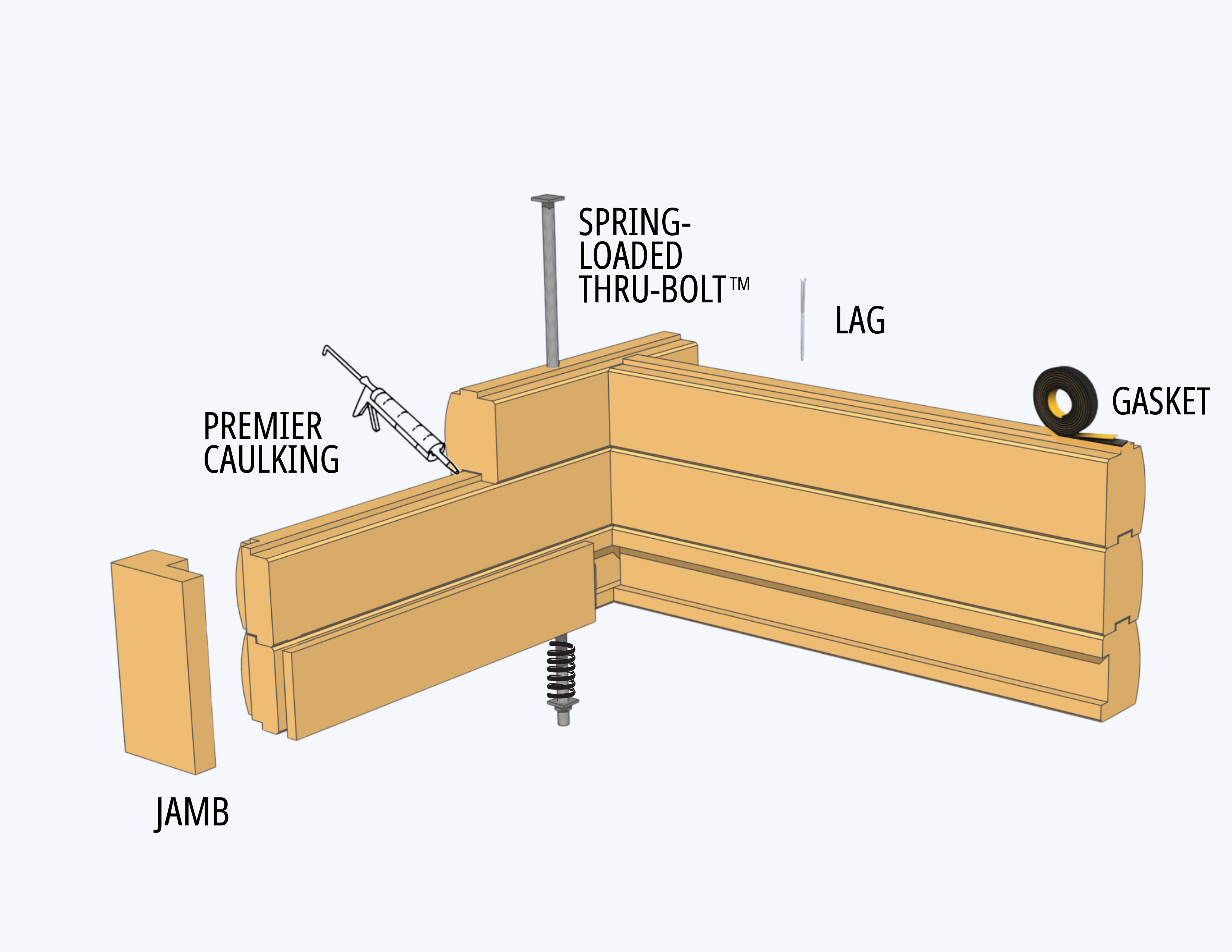

Premier Log Wall

premier log wall schematics

Package includes:

  • 1. Log Wall

    Includes logs that are precut to length with shiplap butt joints; precut corners; precut door/window openings with 4" shiplap jambs; precut sills and headers; 2" exterior log siding to cover perimeter band; 1" lumber for base log wiring channel; premium caulk and gasket; timber lags; spring loaded Thru bolts; drill guide and bits. Logs are grade stamped and pressure treated with ClearTreat sodium borate. Also includes exterior stain and 5/25 year written warranty.

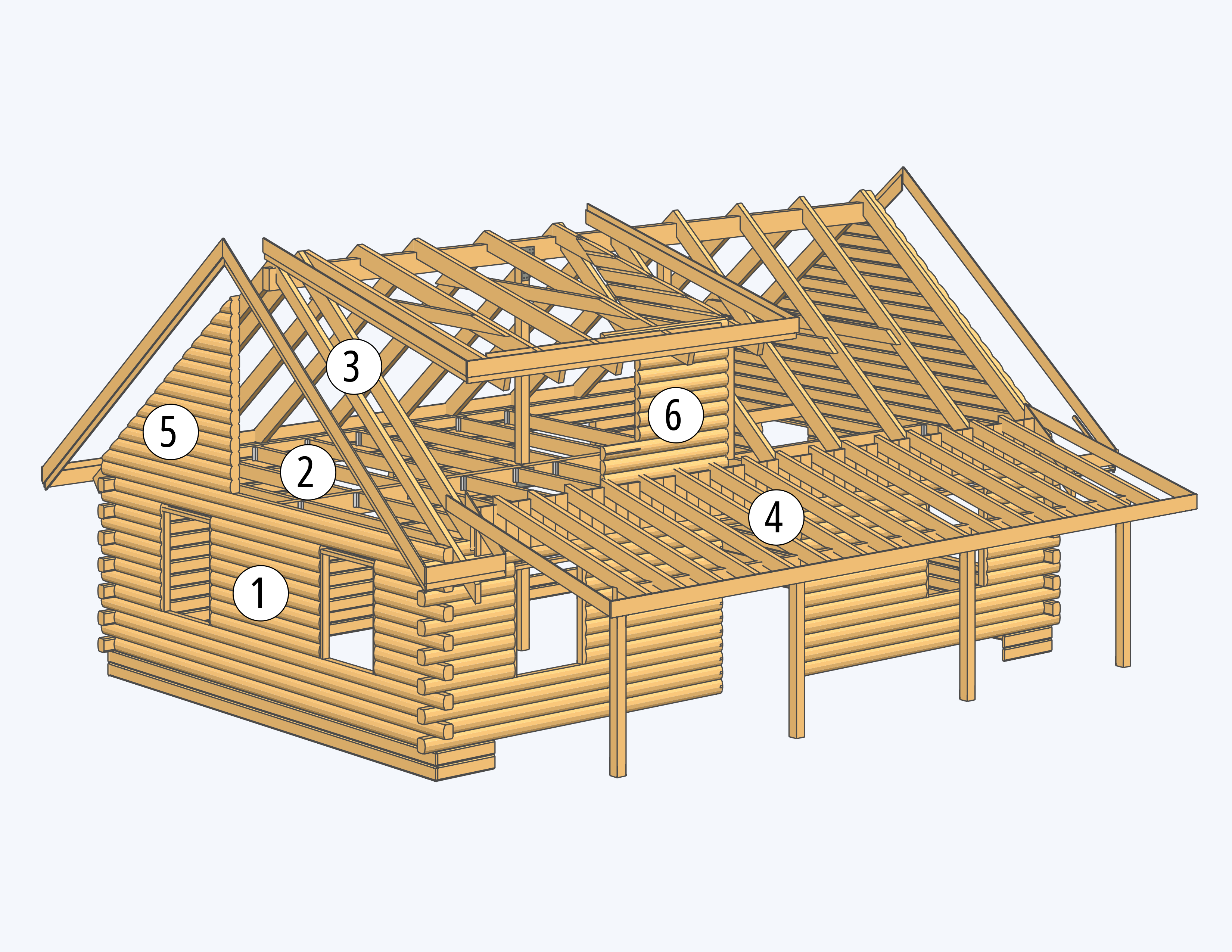

Premier Log and Beams

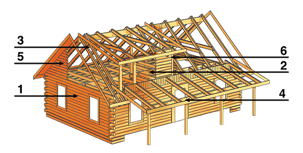

premier log beams schematics

Package includes:

  • 1. Log Wall

    Includes logs that are precut to length with shiplap butt joints; precut corners; precut door/window openings with 4" shiplap jambs; precut sills and headers; 2" exterior log siding to cover perimeter band; 1" lumber for base log wiring channel; premium caulk and gasket; timber lags; spring loaded Thru bolts; drill guide and bits. Logs are grade stamped and pressure treated with ClearTreat sodium borate. Also includes exterior stain and 5/25 year written warranty.

  • 2. Loft Framing

    Includes precut exposed timber frame joists and girder beams; support posts with adjusters; joist and girder hangers; girder connector plates per plan.

  • 3. Rafter Framing

    Includes precut exposed timber frame rafters; solid rafter collar ties (4x8) with bolts; ridge beam and ridge connector plates per plan; support posts with adjusters; timber lags; frieze boards; fascia trim.

  • 4. Porch Framing

    Includes precut exposed timber frame rafters, top plate and support posts; 1" lumber for board & batten trim. All of these items are borate pressure treated and include exterior stain.

  • 5. Exterior Gable

    Includes borate pressure treated 2" exterior log siding and exterior stain.

  • 6. Dormers

    Shed dormers include precut exposed timber frame rafters and kick rafters; precut sills, plates and posts; kick rafters. Doghouse dormers include precut exposed timber frame ridge beam and rafters; precut sills, plates and posts. All dormers include borate pressure treated 2" exterior log siding and exterior stain.

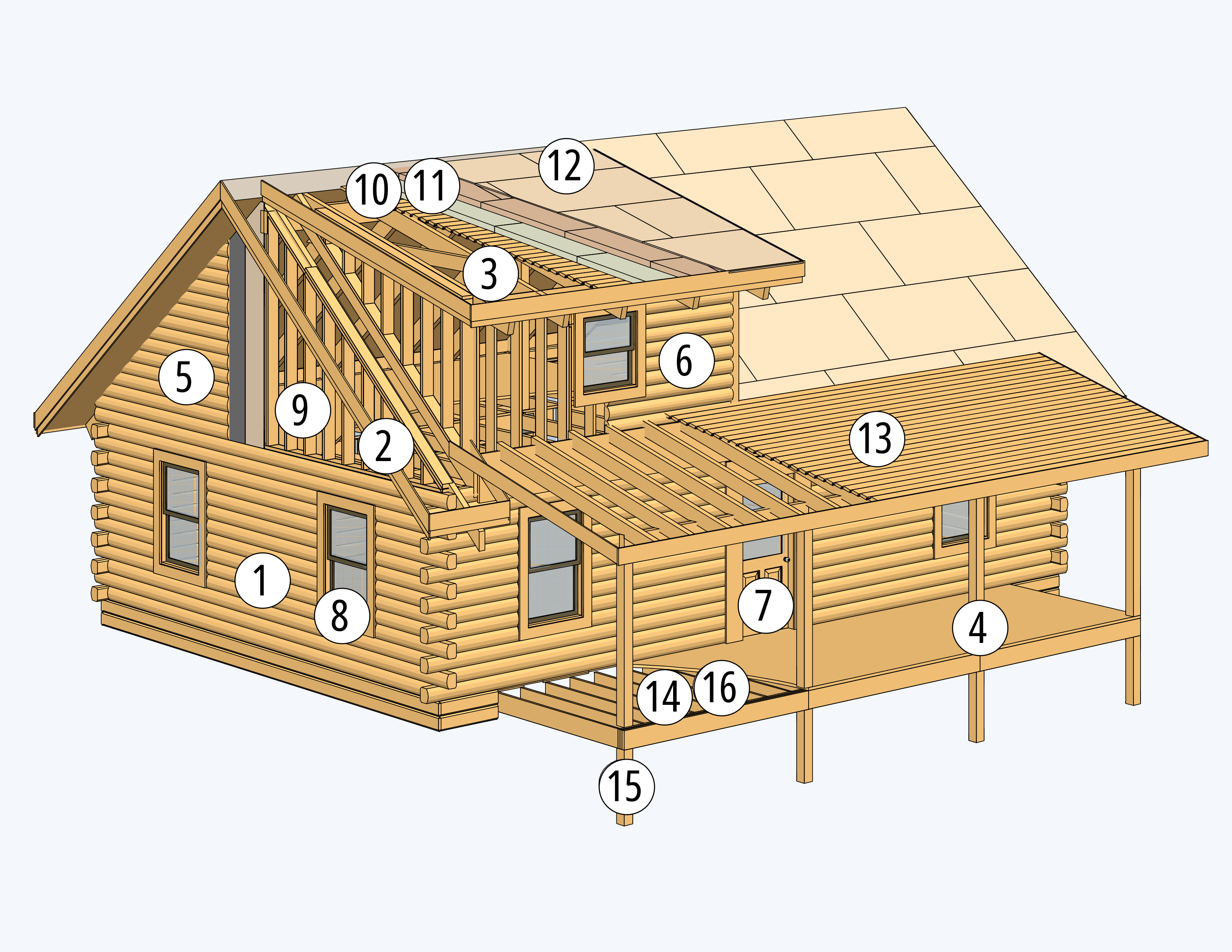

Premier Plus

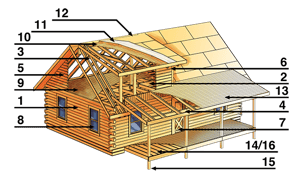

premier plus schematics

Package includes:

  • 1. Log Wall

    Includes logs that are precut to length with shiplap butt joints; precut corners; precut door/window openings with 4" shiplap jambs; precut sills and headers; 2" exterior log siding to cover perimeter band; 1" lumber for base log wiring channel; premium caulk and gasket; timber lags; spring loaded Thru bolts; drill guide and bits. Logs are grade stamped and pressure treated with ClearTreat sodium borate. Also includes exterior stain and 5/25 year written warranty.

  • 2. Loft Framing

    Includes precut exposed timber frame joists and girder beams; support posts with adjusters; joist and girder hangers; girder connector plates per plan.

  • 3. Rafter Framing

    Includes precut exposed timber frame rafters; solid rafter collar ties (4x8) with bolts; ridge beam and ridge connector plates per plan; support posts with adjusters; timber lags; frieze boards; fascia trim.

  • 4. Porch Framing

    Includes precut exposed timber frame rafters, top plate and support posts; 1" lumber for board & batten trim. All of these items are borate pressure treated and include exterior stain.

  • 5. Exterior Gable

    Includes borate pressure treated 2" exterior log siding and exterior stain.

  • 6. Dormers

    Shed dormers include precut exposed timber frame rafters and kick rafters; precut sills, plates and posts; kick rafters. Doghouse dormers include precut exposed timber frame ridge beam and rafters; precut sills, plates and posts. All dormers include borate pressure treated 2" exterior log siding and exterior stain.

  • 7. Exterior Pre-hung Doors

    Includes interior and exterior 1" trim lumber.

  • 8. Windows

    Premium Low-E aluminum clad units with screens. Includes interior and exterior 1" trim lumber. Also includes fixed glass (circle top, trapezoid) if shown in our predesigned floor plans.

  • 9. Loft Floor Decking

    2x Tongue & Groove graded #2 & better (graded on V-edge side).

  • 10. Roof Decking

    2x Tongue & Groove graded #2 & Better.

  • 11. Roof Insulation

    R-30 - (2) layers rigid foam insulation & screws

  • 12. Roof Sheathing

  • 13. Porch Roof Decking

    2x Tongue & Groove graded #2 & better.

  • 14. Porch Floor

    Includes pressure treated joists, sill and 5/4 flooring.

  • 15. Foundation Posts

    Includes 6x6 pressure treated posts for porch and/or deck per plan.

  • 16. Deck

    Includes pressure treated joists, sill and 5/4 flooring.

Other Components

Other log home building components are available as options and may be priced by your Appalachian Log Structures representative.

  • Other log profiles

  • Log siding corners for dormers

  • Exterior stain/sealer for decks and handrails

  • Interior log paneling and 1” trim lumber for interior partition walls

  • Additional roof insulation

Log Cabin Kit Window & Door Features

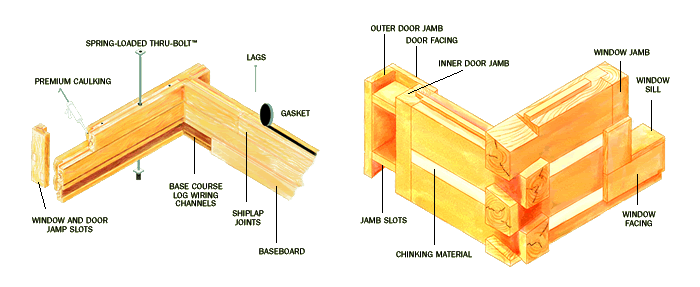

Diagram of Premier Building System Features

Unique Design Assures Snug Windows and Doors

As logs naturally settle, standard 2 x 6 door and window frames can become bowed, causing them to bind. The ALSI system solves that problem. Our log stack is notched and sealed into a stout 4" pre-slotted jamb so the logs can float freely. This allows the window and doors to fit snugly and work smoothly over the years.

Beneath the charming curb appeal of a log home is an intricate wall system to join logs securely together. Well-designed corner joinery is the foundation for a log home's longevity and solidity. Appalachian Log Structures, Inc. offers four corner styles, engineered for maximum life expectancy and stability.

The Premier Building System includes the following features:

  • Premium caulking and gaskets

  • Spring-loaded Thru-Bolts™

  • Base course log wiring channels

  • Baseboard

  • Lags screws

  • Shiplap joints

  • Wide-track tongue and groove

Get Professional Guidance

Are you longing to build a log cabin or home but don’t know where to start? That’s where we come in. A member of our team will be happy to guide you through the process and provide you with helpful resources.

Speak to a Consultant
