We offer over 75 predesigned log home floor plans.

Find Your Dream Home
1-866-LOG-HOME

(1-866-564-4663)

Appalachian Log Structures

Pioneer Log Wall System

Quality Building Systems and Components to Fit Your Budget

All Pioneer Packages Include:

  • Borate pressure treated grade stamped logs

  • 3 sets of blueprints

Pioneer Packages

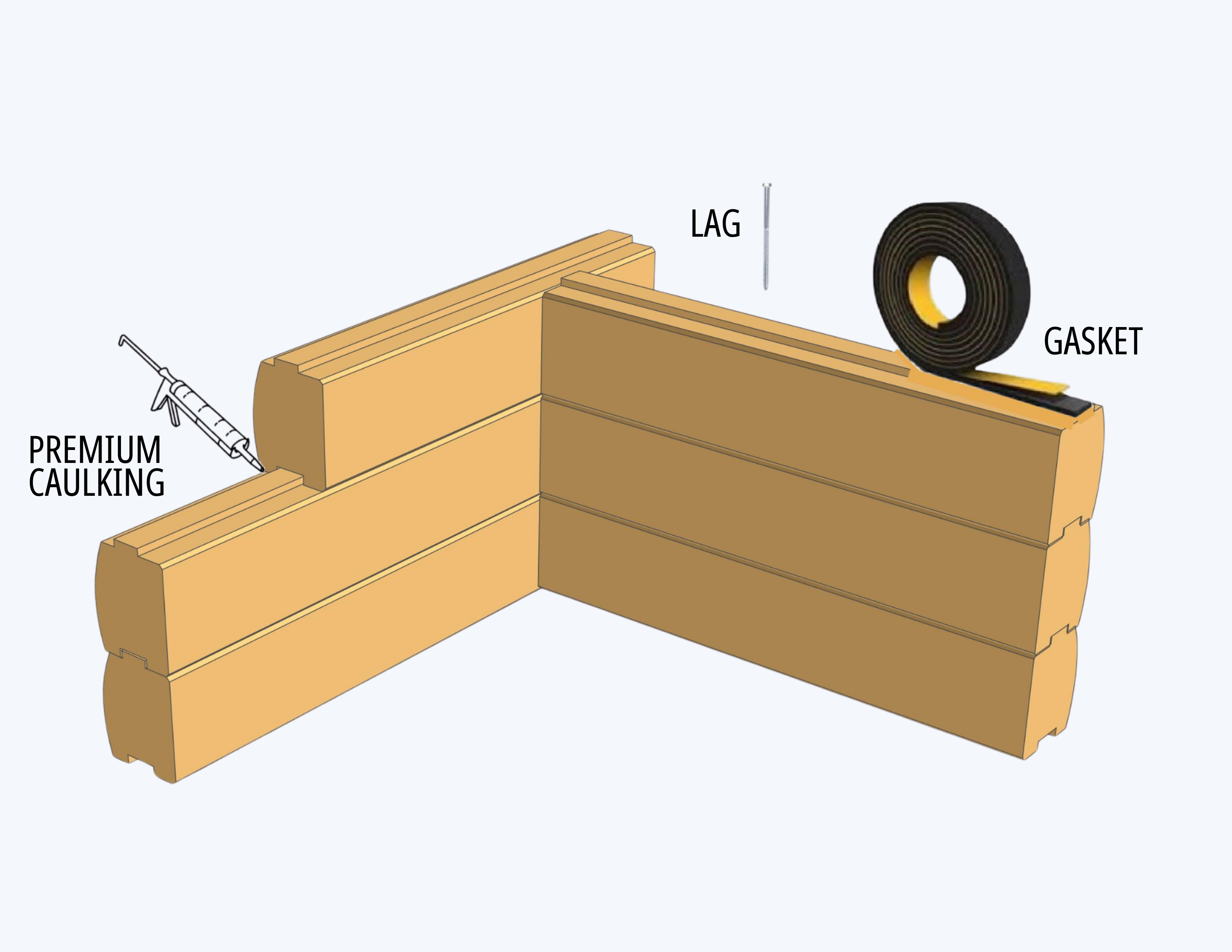

Pioneer Log Wall

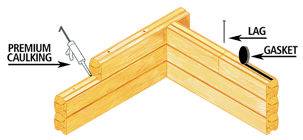

pioneer log wall schematics

Package includes:

  • 1. Log Wall

    Includes linear foot logs (door/window openings and corners are field cut); premium caulk and gasket; timber lags. Logs are grade stamped and pressure treated with ClearTreat sodium borate. Precut corners are available.

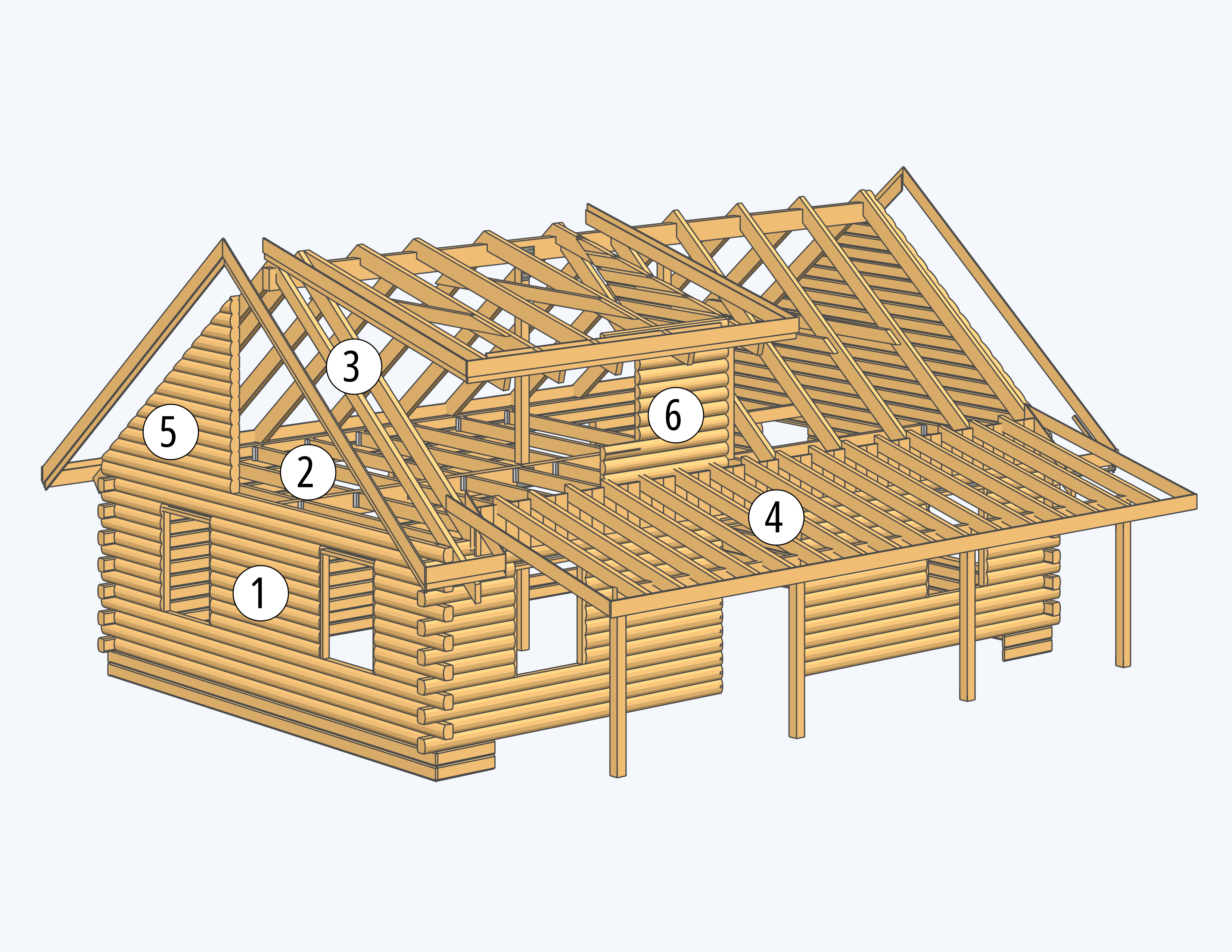

Pioneer Log & Beams

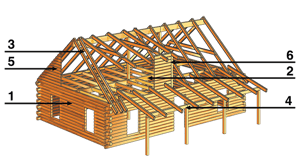

pioneer log beam schematics

Package includes:

  • 1. Log Wall

    Includes linear foot logs (door/window openings and corners are field cut); premium caulk and gasket; timber lags. Logs are grade stamped and pressure treated with ClearTreat sodium borate. Precut corners are available.

  • 2. Loft Framing

    Includes exposed timber frame joists (not precut), girder beams, support posts; timber lags.

  • 3. Rafter Framing

    Includes exposed timber frame rafters (not precut); solid rafter collar ties; ridge beam; support posts.

  • 4. Porch Framing

    Includes exposed timber frame rafters (not precut), top plate and support posts. All items are borate pressure treated.

  • 5. Exterior Gable

    Includes 2" log siding.

  • 6. Dormers

    Includes dormer rafters, kick rafters and exterior log siding.

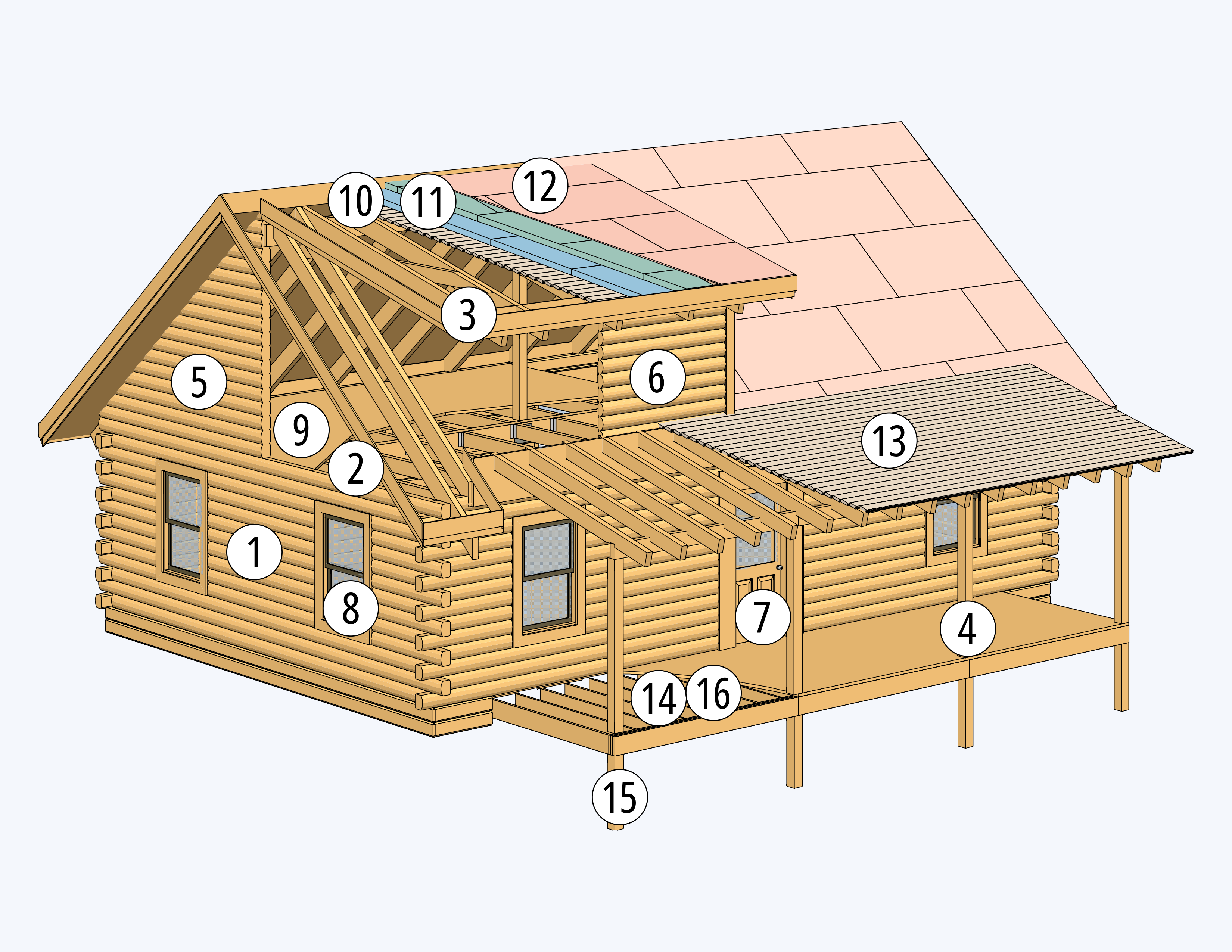

Pioneer Plus

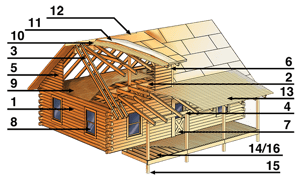

pioneer plus package schematics

Package includes:

  • 1. Log Wall

    Includes linear foot logs (door/window openings and corners are field cut); premium caulk and gasket; timber lags. Logs are grade stamped and pressure treated with ClearTreat sodium borate. Precut corners are available.

  • 2. Loft Framing

    Includes exposed timber frame joists, girder beams, support posts; timber lags.

  • 3. Rafter Framing

    Includes exposed timber frame rafters; solid rafter collar ties; ridge beam; support posts.

  • 4. Porch Framing

    Includes exposed timber frame rafters, top plate and support posts. All items are borate pressure treated.

  • 5. Exterior Gable

    Includes borate pressure treated 2" exterior log siding.

  • 6. Dormers

    Shed dormers include exposed timber frame rafters and kick rafters. Doghouse dormers include exposed timber frame ridge beam and rafters. All dormers include borate pressure treated 2" exterior log siding.

  • 7. Exterior Pre-hung Doors

  • 8. Windows

    Premium Low-E aluminum clad units with screens. Includes interior and exterior 1" trim lumber. Also includes fixed glass (circle top, trapezoid) if shown in our predesigned floor plans.

  • 9. Loft Floor Decking

    2x Tongue & Groove graded #2 & better (graded on V-edge side).

  • 10. Roof Decking

    2x Tongue & Groove graded #2 & better.

  • 11. Roof Insulation

    R-30 - (2) layers rigid foam insulation.

  • 12. Roof Sheathing

  • 13. Porch Roof Decking

    2x Tongue & Groove graded #2 & better.

  • 14. Porch Floor

    Includes pressure treated joists, sill and 5/4 flooring.

  • 15. Foundation Posts

    Includes 6x6 pressure treated posts for porch and/or deck per plan.

  • 16. Deck

    Includes pressure treated joists, sill and 5/4 flooring.

Other Components

Other log home building components are available as options and may be priced by your Appalachian Log Structures representative.

  • Other log profiles

  • Precut corners

  • Hardware items, such as joist hangers, thru-bolts, adjusters, drill guide & bits

  • Base log with wiring channel

  • Exterior stain/sealer

  • 1" trim lumber for baseboard, doors/windows & fascia

  • Perimeter log siding

  • Door/window jambs

  • Additional roof insulation
