Log Home Floor Plan Details
Main Floor: 1260 sq. ft.
Second Floor: 1140 sq. ft.
Total Square Footage: 2400 sq. ft.
Main Floor Details
Living Room: 21' X 15'
Dining Room: 11' X 10'6"
Kitchen: 14' X 15'
Bedroom: 14'6" X 15'
Bath: 12' X 14'
Porch: 8' X 42'
Deck: 160 sq. ft.
Second Floor Details
Bedroom: 14' X 15'
Bedroom: 14' X 15'
Bedroom: 14' X 15'
Den/Office:  14' X 15'

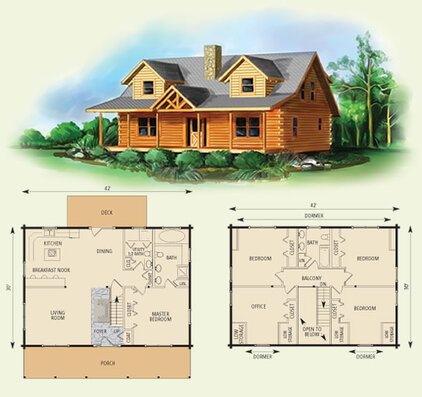

northridge I log home and log cabin floor plan
The Northridge I log home is the first in a series of one and one half story floor plans with a gabled full front porch, twin front window dormers and rear shed dormer. These dormers are used to take advantage of the living space created in this fully floored second story under an open timber frame roof design. The main floor features a large kitchen space with room for a breakfast bar, a dining area and living room with optional fireplace. The bedroom suite offers an oversized bath with plenty of room for a soaking bathtub and separate shower. A separate half bath and utility area make this a great design for those looking to retire and live on one floor, but have room for guests on the second floor.
Upstairs features three additional bedrooms, a full bath, and flex space that could be used for an additional bedroom, playroom, or home office.
